Tinted Float Glass

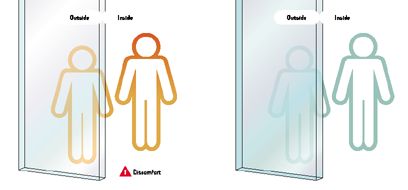

Tinted float is produced by adding a colourant during a float glass production run. The most common colours are grey, bronze, green and blue. Apart from its function in an aesthetic sense, tinted float is primarily designed to reduce solar heat gain and glare and increase the comfort levels and reduce cooling costs in buildings.
Most float glass can be toughened, a process that creates safety glass out of annealed glass. Kanglideer offers the tinted glass from 3mm up to 10 mm.

Features

Reduced Light Transmission
Reduced Solar Heat Gain
Enhanced Aesthetics
Increase Design Flexibility

Applications

glazing of premises

manufacture of furniture

creation of original interiors

furniture, decorative displays etc.

COMPARING CLEAR AND TINTED FLOAT GLASS

Color	Thick mm	Visible Trans V.T%	Solar heat							Shading Coefficient
			Reflect %	Absorb. %			Direct Trans. H.T%	Total Heat Trans. H.T%	Relative Heat Gain BTU/hr.sq.ft
			Reflect %	Absorb	Reradiated To Outdoors	Reradiated To Indoors	Direct Trans. H.T%	Total Heat Trans. H.T%	Relative Heat Gain BTU/hr.sq.ft
Bronze	3	68	5	28	20	8	67	75	219	0.86
	5	55	5	42	29	13	53	66	194	0.76
	6	50	5	47	33	14	48	62	183	0.71
	8	41	5	56	39	17	39	56	167	0.64
	10	33	5	64	45	19	31	50	151	0.57
	12	27	5	70	49	21	25	46	139	0.53
Dark Gray	3	41	5	34	24	10	61	71	208	0.82
	5	24	5	48	34	14	47	61	181	0.70
	6	18	5	54	38	16	41	57	170	0.66
Green	4	80	5	35	24	11	60	71	205	0.82
	5	78	5	41	29	12	54	66	194	0.76
	6	75	5	47	33	14	48	62	183	0.71
	8	70	5	56	39	17	39	56	167	0.64
	10	65	5	64	45	19	31	50	151	0.57
	12	61	5	70	49	21	25	46	139	0.53
Blue	3	82	5	26	18	8	69	77	224	0.89
	5	76	5	38	27	11	57	68	200	0.78
	6	73	5	43	30	13	52	65	192	0.75
	8	68	5	52	36	16	43	59	175	0.68
	10	63	5	59	41	18	36	54	162	0.62
	12	58	5	66	46	20	29	49	148	0.56
